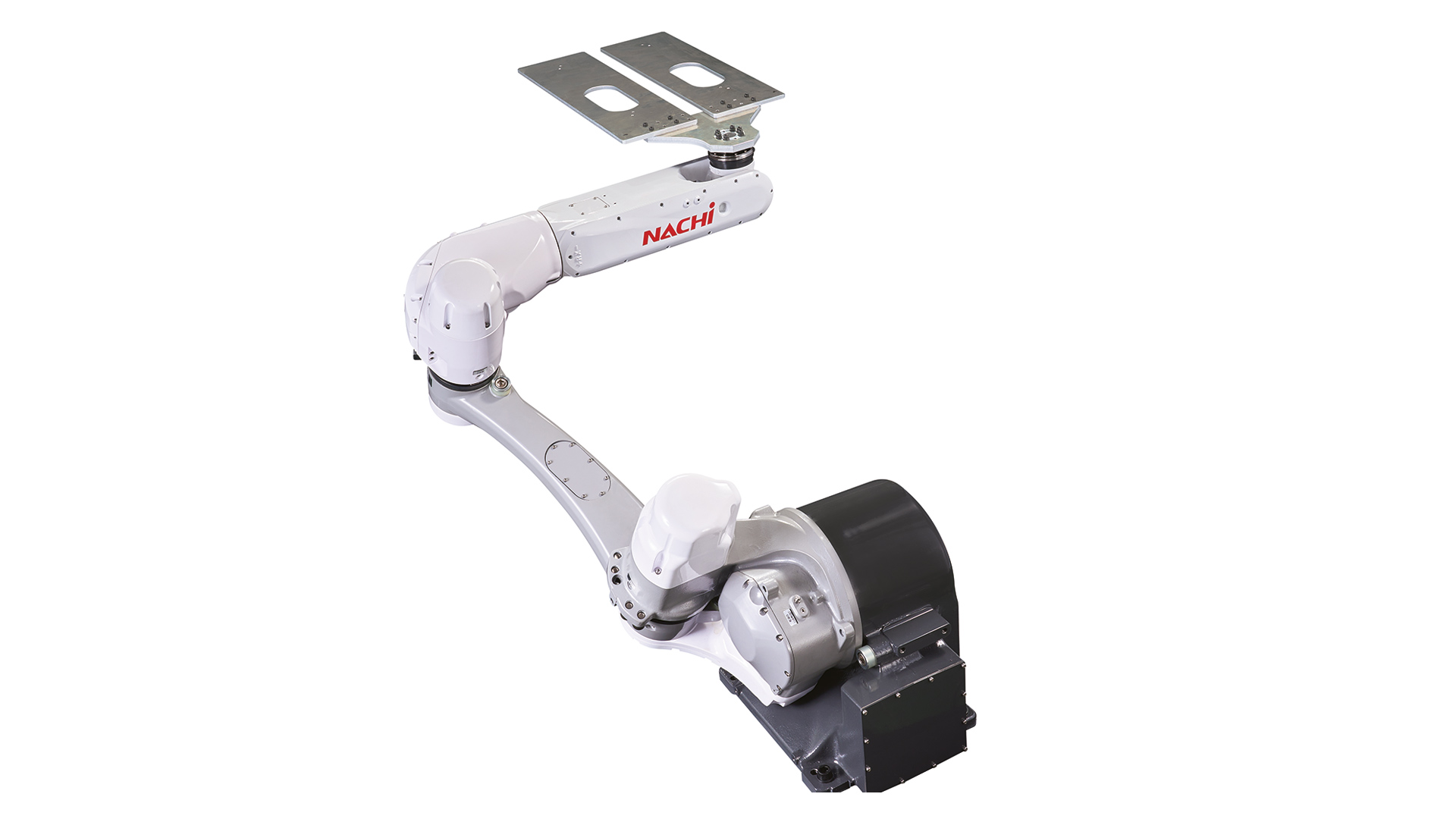

MZ12W
PICTURE: MZ12W
Working envelope |
Vertical coverage:
DRAWING: MZ12W
| MZ12W | |
|---|---|
| Max. reach: | 1564mm |
| Payload: | 12kg |
| Axes: | 6 |
| Repeatability: | ±0.04mm |
| Protection Rating Body: | IP67 equivalent |
| Protection Rating Upper Arm: | IP67 equivalent |
| Clean Room Rating: | ISO Class 4 |
| Hollow Wrist or Arm: | Hollow Wrist |
| Mounting: | Floor, Inverted, Tilted |
| Weight: | 195kg |
| MZ12W Catalogue | n/a |
