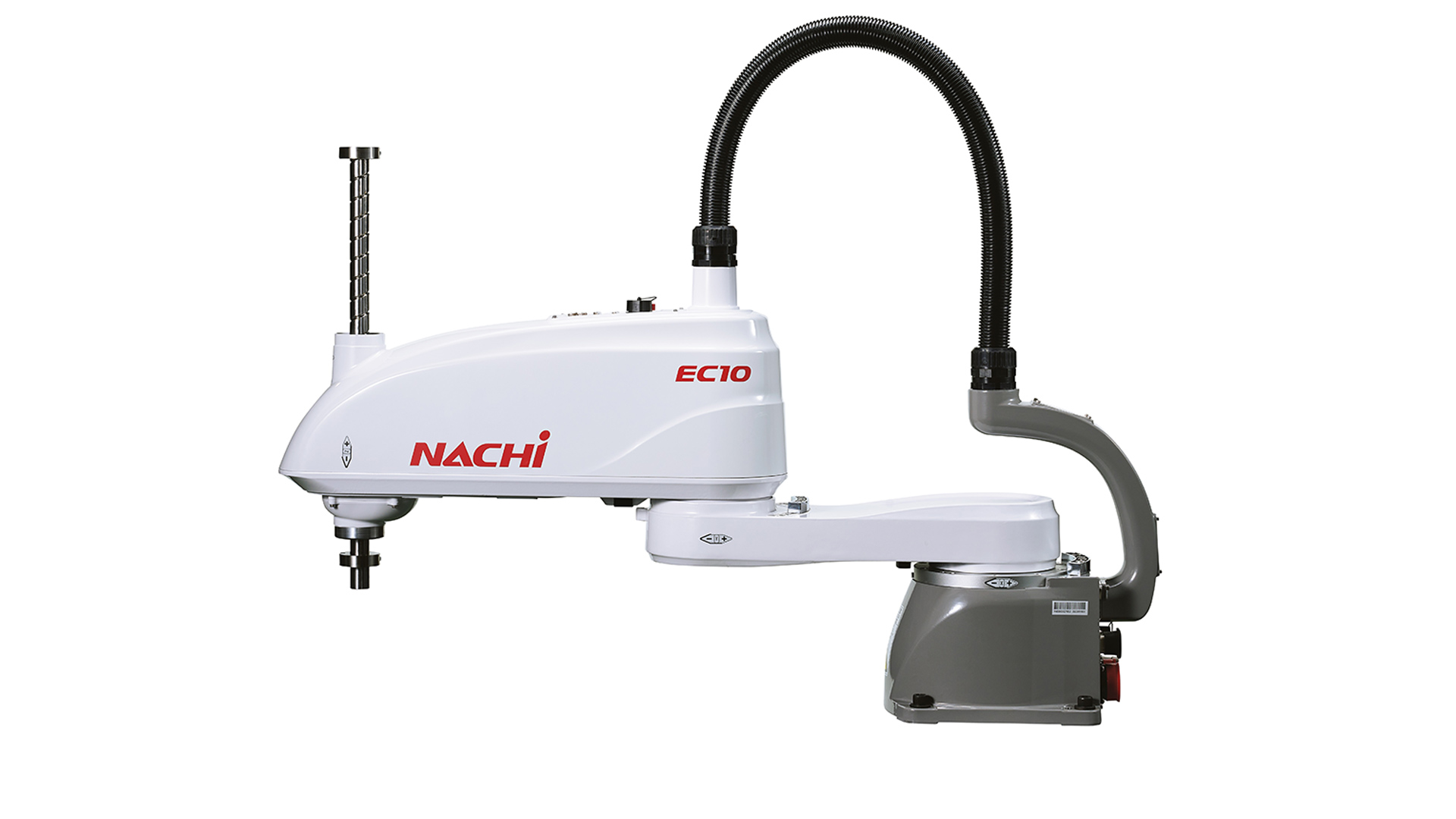

EC10-8030-01


Working envelope |
Vertical coverage:

  EC10-8030-01
Max. reach: 800mm
Payload: 10kg (rated 5kg, conditional 12kg)
Axes: 4
Repeatability: ±0.025mm
Protection Rating Body: IP20 equivalent
Protection Rating Upper Arm: IP20 equivalent
Clean Room Rating: -
Hollow Wrist or Arm: –
Mounting: Floor
Weight: 41kg
EC10-8030-01 Catalogue Download

Features:

The EC Series SCARA robots are compact, high-speed, and highly precise solutions ideal for assembly, inspection, and small part handling in confined or space-sensitive environments. Designed with simplicity and performance in mind, the EC Series supports lean automation across diverse industries.

Lightweight & Space-Saving Design
With a compact footprint and lightweight construction (as low as 17kg for EC06), the EC Series is perfect for tabletop or floor-mounted setups where space is limited.

Multiple Reach Options
Choose from a variety of models based on your needs:

  • EC06: Available with 500mm, 600mm, or 700mm reach
  • EC10: Available with 800mm or 1000mm reach and increased payload

High-Speed, High-Precision
The EC robots deliver exceptionally fast cycle times (as fast as 0.39 sec) with position repeatability as fine as ±0.02 mm, making them ideal for applications requiring delicate, repeatable movements.

Smooth Motion with Hollow Wrist
The hollow wrist design simplifies tool wiring and pneumatic routing, reducing interference and improving reliability — especially beneficial in tight automation cells.

Extended Payload Range

  • EC06: Rated for 3 kg, with a maximum of 6 kg
  • EC10: Rated for 5 kg, and supports up to 10 kg (12 kg conditionally) — suitable for larger or dual gripper applications

Flexible I/O and Communication
Support for multiple fieldbus options (EtherNet/IP, PROFINET, EtherCAT, CC-Link, and more) allows seamless integration into any automation platform. LAN and I/O connections are built-in.

Easy System Integration
The EC Series supports a wide range of optional components: built-in solenoid valves, compact and smart teach pendants, safety interfaces, and controller protection options.

Clean and Controlled Operation

  • Low noise level (as low as 77 dB)
  • Operates in ambient temperatures from 0–40°C and up to 80% humidity (non-condensing)

The EC Series blends compact design, reliable performance, and flexible integration — making it a powerful SCARA solution for modern production lines.
